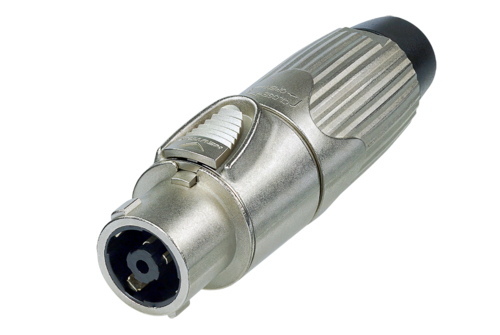

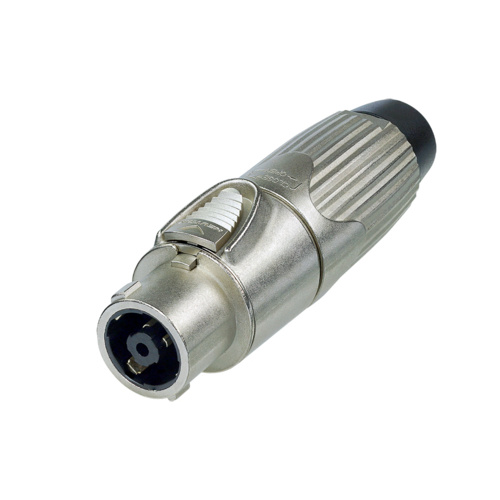

Neutrik NLT8FX

8-pole female cable connector, Nickel housing, chuck type strain relief, solder

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Features & Benefits

• Current rating 40A continuous, 50 A audio signal with 50% duty cycle
• Robust and durable all metal housing
• Reinforced metal quick lock system for ease and precise locking
• Extra large solder contacts for up to 6mm² (AWG10) wires
• Mate with all available speakON products

Technical Information

• Product
  • Title: NLT8FX
  • Connection Type: speakON
  • Gender: female
• Electrical
  • Contact resistance: < 2 mΩ (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 10 GΩ
  • Rated current per contact: 40 A rms continuous
  • Rated current per contact: 50 A audiosignal, duty cycle 50 %
  • Rated voltage: 250 V ac

** Attention; speakON is NOT to be used as an AC mains or power supply connector! **

• Mechanical
  • Cable O.D.: 8 - 20 mm
  • Cable retention: ≥ 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 6 mm²
  • Wiresize: 10 AWG
  • Wiring: Solder contacts
  • Locking device: Quick Lock (latch)
• Material
  • Contact plating: 4 µm Ag
  • Contacts: Spring copper
  • Insert: Polyamide (PA 6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Strain relief: Polyacetal (POM)
• Environmental
  • Flammability: UL 94 HB
  • Protection class: IP 50 (mated condition)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
